A fruitful collaboration with Dolomiti

All-natural fruit juices, pulps and purées made with organically grown apples and pears are a firm favourite with Italian consumers. But it’s a competitive business, and producers have to keep an eye on their margins. Here we describe how Dolomiti Fruits, a Northern Italian producer, used Alfa Laval’s plate heat exchangers to make their production more efficient, and their business more profitable.

DATE 2024-09-16
fruitful collaboration widegap

Back in 2018, Dolomiti was using a large tubular heat exchanger for the enzymatic deactivation step of its production. However, operators noticed that fruit particles were sticking to the tubes. The sugar got burned onto the metal surfaces, reducing the heat exchangers’ efficiency and making it difficult to clean. They also observed a pressure drop of up to 16 bars, which presented a challenge for their pumps, as well as increasing power consumption.

Distributor suggests plate heat exchanger

To resolve these issues, Dolomiti started looking for a new type of heat treatment technology. They sought advice from Tekna Parma, Alfa Laval’s local Italian partner, stating their main ambitions: to reduce pressure drop, lower energy consumption and make cleaning easier. On Tekna Parma’s advice, they decided to try out an Alfa Laval plate heat exchanger with wider gaps.

Two down; one to go

Using this new type of plate heat exchanger increased heat recovery, enabling a 45% reduction in steam consumption. Moreover, it lowered the pressure drop, cutting electricity consumption with 10–15%. However, Dolomiti’s production manager still wanted to improve the cleanability of the plates. He clearly stated the importance of this requirement in discussions with Tekna Parma and Alfa Laval’s channel manager, Jakob Worsoe, and the three decided to work together to develop a new solution.

Collaborative product development

“Listening carefully to the customer’s needs and ambitions proved fruitful for all involved”, says Industrialization project manager Clemens Wictor. “Sometimes it’s very helpful to have a new pair of eyes on our products. We can then study the details and decide whether or not it’s possible to develop a solution to the customer’s problem.”

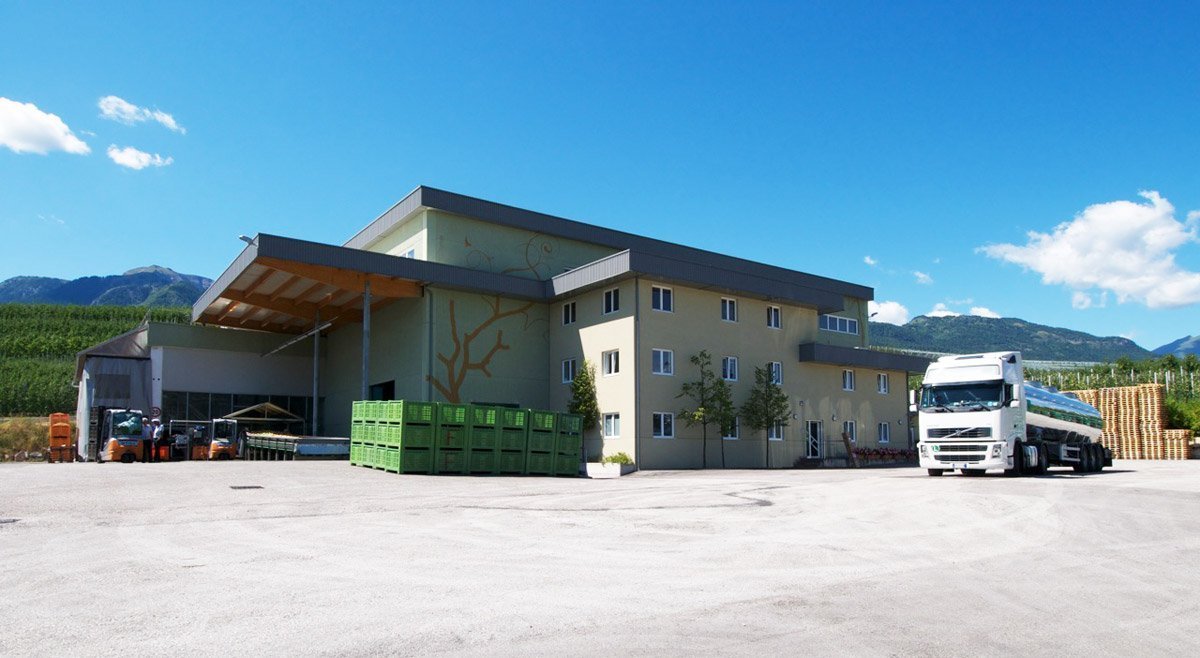

azienda b

The test results on Alfa Laval’s modified heat exchanger plates were good, and a decision was taken to implement these in the new all hygienic WideGap plates. “In fact, this collaboration laid the foundation for the creation of Alfa Laval’s Hygienic line HL8-WG plates, which take hygiene a step further,” concludes Clemens.

New factory, new decision

Two years later, when Dolomiti was building a new production plant, they needed to decide which kind of heat exchangers to invest in: the old-style tubular heat exchangers or Alfa Laval’s WideGap plate heat exchanger technology?

Encouraged by Clemens and Jakob and the positive experience, they opted for the new design, and they haven’t regretted their decision for a moment! Says Dolomiti, “Thanks to the dramatic improvement in energy consumption, our investment paid for itself within a year, and the heat exchangers have been performing well for over three years.”

A major reduction in energy consumption

Dolomiti now has four production lines, all of which use Alfa Laval’s state-of-the-art WideGap heat exchanger technology, and the plant produces up to 250 tonnes of all-natural, high-quality fruit juices, pulps and purées every day. Altogether, the company has processed more than 80,000 tonnes of fruit using our heat exchangers. Product quality and cleanliness have improved; pressure drop is down from 16 to 9 bars, and the company has even gained some floor space since the new heat exchangers have a smaller footprint than the old equipment. But the biggest impact of the new heat exchangers has been on energy costs. “With approximately 10–15% lower electricity consumption, combined with product-to-product heat recover of reduced steam between 45–55%, we calculated that we can save about €400,000 per year on energy” says Dolomiti.

Highlighted technologies

Energy savings

cleantech bulb 185

45% lower energy consumption

Technology shift

Technology shift pos solid

Replaced old-style technology with new solution

Energy cost savings

cleantech cost savings 185

Energy cost savings of €400,000 per year

Emissions savings

Icon Description automatically generated

Savings of 500 tonnes of CO2
