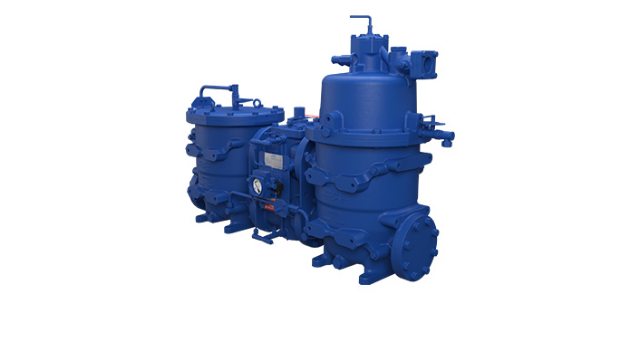

With original Atrium 2.0 technology, Alfa Laval Moatti 290 automatic self-cleaning filters will adapt to meet your requirements with precision. The Eliminator configuration meets all your medium-speed diesel engine lubrication oil requirements, ensuring that you consistently meet ISO 16889 and ISO 4406 standards. For every commercial marine vessel class there is a Moatti 290 filter available to treat fuel oil, lubrication oil and hydraulic control oil.
The Alfa Laval Moatti 290 self-cleaning filter range covers rigorous oil filtration needs in several industries and applications.
- Engine power
- Combined heat and power
- Fuel conditioning
- Lube oil treatment
- Fuel oil treatment
- Hydraulic control oil treatment
- Fuel cleaning
- Oil cleaning
How it works
Based on Alfa Laval Atrium technology
Extensive filter area is critical for fine filtration, for example at the very fine grade of 6 μm required for hydraulic control oil. Using the original Alfa Laval Atrium technology, filters in the Alfa Laval 290 filter range provide a tremendous increase in filtering surface – with virtually no impact on pressure drop.
This is possible through the special patented shape of the Atrium filter elements, as well as their smaller and highly optimized flow distribution system. Atrium technology creates the market’s best ratio between the available filtering surface and the total footprint/volume of the filter.
