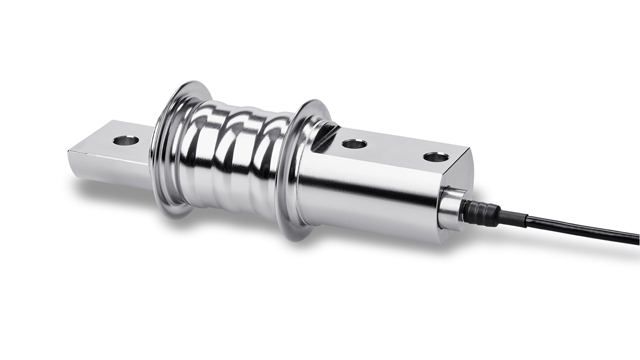

Beam load cells
The Alfa Laval Weighing System with Beam Load Cells provides precision measurement for hygienic processes that require level measurement, mixing, filling, dosing or batching. Compact and straightforward, it is perfect for load cell measurement in small or mobile tanks up to 4,000 kilos in size.
Reliable, accurate bending beam load cells for hygienic process weighing
- Maximize process uptime with high-precision, high-accuracy load cell measurement
- Cut costs and contamination risks thanks to hygienic, hermetically sealed stainless steel design
- Easy to install, operate, maintain and clean due to compact footprint, load cell management, and straighforward design with no moving parts
- Versatile, customizable weighing solution with broad range of fieldbus interfaces, digital cables and ATEX and IECEx versions
- Belt scales
- Platform scales
- Small vessels
- Filling machines
- Process equipment
Special product models:
ATEX and IECEx Alfa Laval Value Calculator cost estimator tool
Tired of unreliable and unhygienic load cells?
The Alfa Laval load cells are based on a patented digital capacitive technology that features a number of advantages compared to other technologies used for measuring force and weight.
How it works
The Alfa Laval Weighing System with Beam Load Cells features patented digital capacitive technology that has a non-contact capacitive sensor mounted inside the load cell body.
Each weighing system consists of several beam load cells, including load cell modules, an electronic output module (analogue or digital), load cell weight sensors, load cell control modules, and cable. To ensure robust and reliable connection between the tank and the load cells, Alfa Laval offers an additional range of tank legs that fits to the load cells.
Factory pre-calibration does away with time-consuming onsite adjustments during commissioning. No costly, complicated mounting kits, stay rods or overload protection devices. Just precise beam load cell weighing and management at its best.
When a load is applied, a portion of the load is transmitted to each load cell, which sends an electrical signal proportional to the load sensed to the control module. The control module converts the signals to an accurate weight reading.
Because there is no contact between load cell weight sensors and the load cell body, the load cells are largely unaffected by overload, side loads, torsion, shocks and welding voltages. This makes straightforward mechanical load cell installation possible.
A proprietary application-specific integrated circuit (ASIC) in the beam load cell converts, compensates and calibrates the output from the ceramic load cell weight sensors, enabling plug-and-play operation and accurate compression load cell measurement.
You might also be interested in...

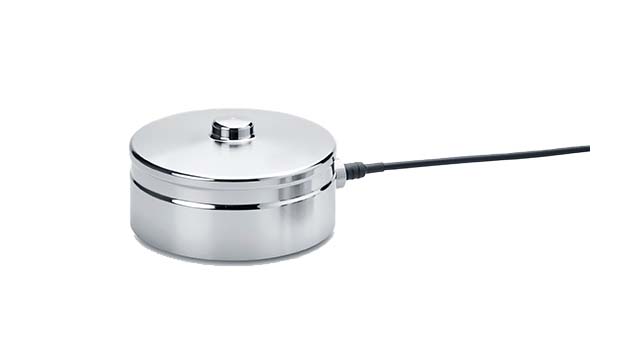

Compression Load Cell
