Multi

Engineered for use in most industries, Toftejorg rotary spray heads from Alfa Laval are highly efficient tank-cleaning offer exceptional cleanability, better end-product quality, greater overall output and reduced operating costs.

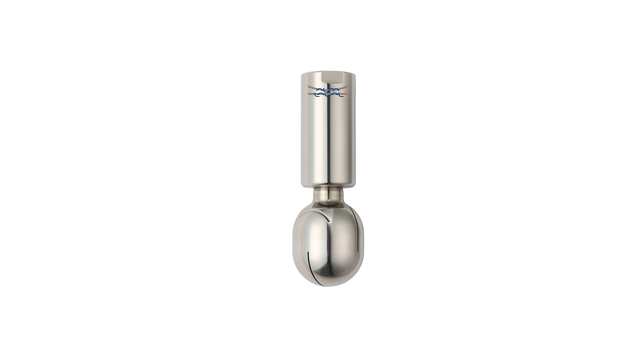

rotating spray head multi 640x360

Cost-effective cleaning

Toftejorg rotary spray heads provide high cleaning efficiency at significantly reduced cycle times to meet the tank-cleaning requirements of various process industries ­­­– from the pulp and paper and chemical processing industries to the bioethanol and starch industries. Toftejorg rotary spray heads also provide measurable savings by cutting energy, chemicals and water consumption for virtually any tank size and configuration.

To achieve the best cleaning results, Toftejorg rotary spray heads use an optimized spray pattern to ensure efficient distribution of rinse water to all inner tank surfaces. The high-impact dense spray pattern removes any residue after the production cycle more quickly and effectively than the much more expensive and time-consuming cleaning methods of soaking in chemicals or manual cleaning. Self-draining and self-cleaning, inside and out, all Toftejorg rotary spray head devices comply with Good Manufacturing Practice.

Performance reliability and long service life

Designed for minimal internal pressure loss, Toftejorg Rotary Spray Heads rotate at pressures of less than 0.1 bar; however, the recommended operating pressure is between 2 and 3 bar. For over half a century, rotary spray head technology has proven successful in providing reliable and repeatable cleaning performance and long service life.

Product benefits

  • 40% faster cleaning = more time for production
  • Dynamic cleaning performance and 360° full wetting
  • Saves up 40% of your cleaning cost

The range of Multi:

Channel Partners

Alfa Laval products are available through our channel partner network. Our partners provide product expertise and excellent service, with the goal to help you purchase the right product for your application.

Product catalogue

Close at hand_Spareparts_2019 - Cover image 200x395.png

Latest 'Close at hand' online version

Find an Alfa Laval product

Alfa Laval Rotary spray head

Cleans with a rotating fan generating impact and coverage. This results in  lower liquid consumption and in shorter time.

How it works

Toftejorg rotary spray heads use the cleaning fluid itself to provide coverage and impact. The physical flow of the cleaning media causes the rotary spray head to rotate, with fan jets laying out a swirling pattern across the inner surface of the vessel.

These jets provide a combination of physical impact and a variable falling film of cleaning fluid that covers all the internal surfaces of the tank or reactor. The variable falling film has higher heat and mass transfer coefficients than the falling film produced by the static spray ball.

The spray head also cleans itself by directing the cleaning media through the rotating bearing track and onto the neck of the elongated head.

Rotary spray heads are a cost-effective alternative to traditional static spray balls because they use only small volumes of cleaning fluid at low pressure.

These devices are suitable for virtually all kinds of industrial cleaning, including tanks, reactors, vessels and other containers.


Certification    Multi range      Sani range  Sani SB range
 ATEX              X
2.1 material cert.          X             X          X
3.1 material cert.              X         X
 Q-doc.              X          X
 3A             X
 EHEDG             X
Connection
 Clip-on          X           X         X
 Weld-on          X           X         X
 Thread          X           X
Surface finish :
0.8 ra          X          X         X
0.5 ra            X         X
Spray Pattern
180° Down         X         X
270° UP         X         X         X
360°         X         X         X
